MPO Connector for Data Centers and Telecom Networks
Product Description

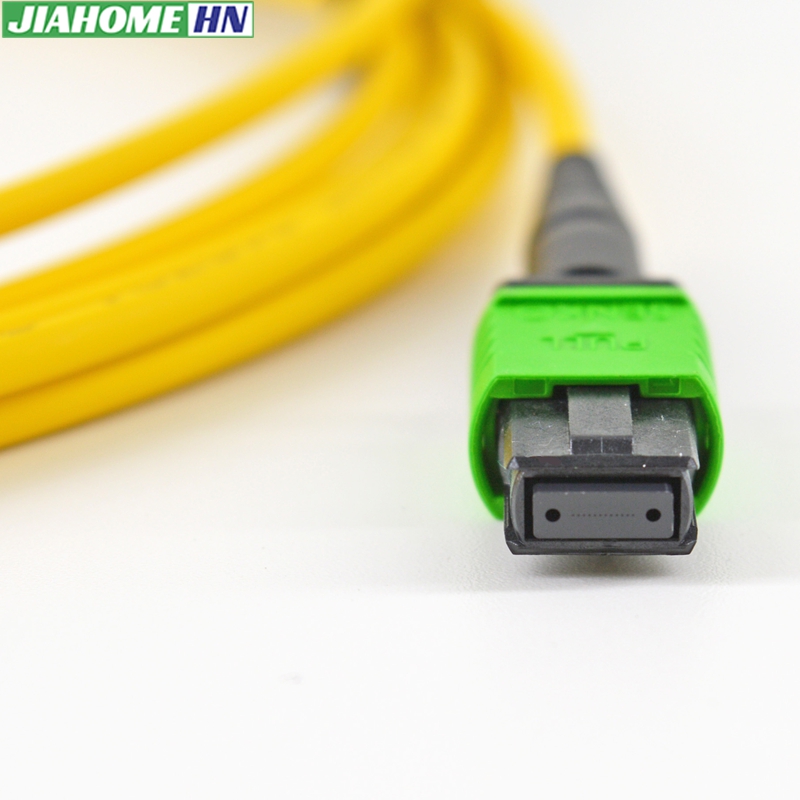

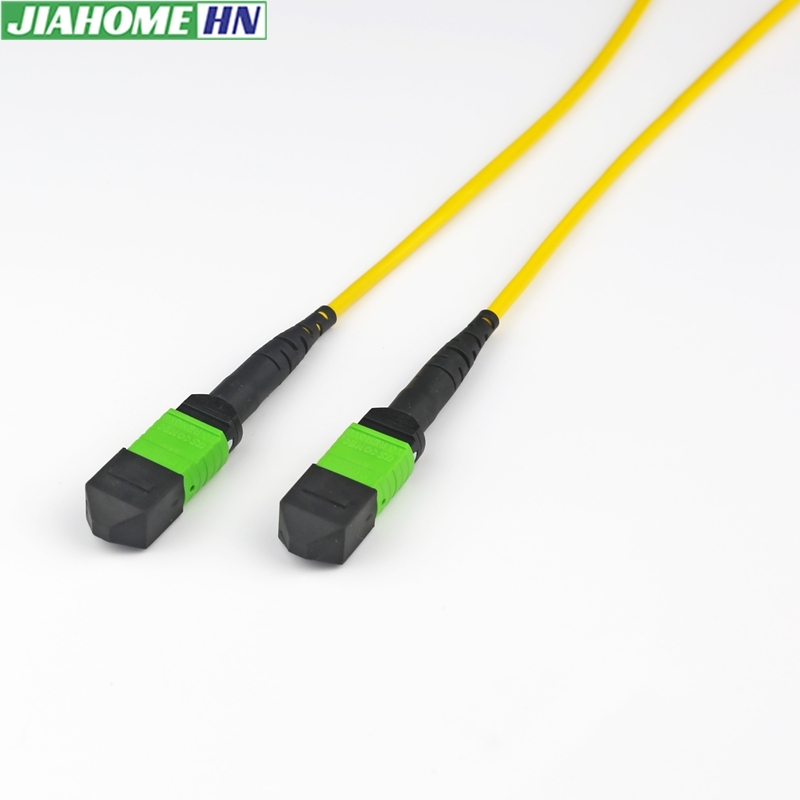

An MPO Connector is a multi-fiber optical connector that integrates multiple fibers (commonly 8, 12, 16, or 24) into a single high-density interface for fast and scalable fiber connectivity.
MPO stands for Multi-fiber Push On, and it is widely used in modern structured cabling systems. Unlike LC or SC connectors that handle single or duplex fibers, MPO connectors support parallel optical transmission, making them essential for high-speed data center architectures.
Typical applications include:
MPO Patch Cords
MPO Trunk Cables
MPO Cassettes
High-density fiber cabling systems
QSFP+ / QSFP28 / QSFP-DD transceivers
Product Types
MPO Connectors are available in multiple configurations based on fiber count, gender, polish type, and performance grade.
MPO Male and Female Connectors
Male connectors include guide pins, while female connectors have alignment holes. Proper pairing is required for correct mating.
Fiber Count Options
- 8 Fiber MPO Connector
- 12 Fiber MPO Connector
- 16 Fiber MPO Connector
- 24 Fiber MPO Connector
Standard vs Elite MPO Connectors
- Standard MPO Connector: typical data center use
- Elite Low-Loss MPO Connector: optimized for high-performance networks
Single-mode vs Multimode MPO Connectors
- OS2 MPO Connector (long-distance, telecom networks)
- OM3 / OM4 / OM5 MPO Connector (data center applications)
Product Advantages
MPO Connectors deliver high-density connectivity, fast deployment, and superior scalability for next-generation optical networks.
Key advantages include:
- High fiber density in compact form factor
- Plug-and-play installation
- Reduced installation labor costs
- Low insertion loss and high reliability
- Support for 40G–800G Ethernet evolution
- Simplified cable management
- Future-ready scalable architecture
Applications
- MPO Connectors are used in any high-speed optical network requiring high fiber density and scalable architecture.
Typical applications include:
- Hyperscale data centers
- Cloud computing infrastructure
- AI and GPU clusters
- Telecom backbone networks
- Enterprise campus networks
- Storage area networks (SAN)
- EPC turnkey infrastructure projects
For EPC contractors, factory-terminated MPO Connector solutions reduce onsite installation time and improve project delivery efficiency.
FAQ
1. What is an MPO Connector used for?
An MPO Connector is used to connect multiple optical fibers in a single interface for high-density fiber optic networks such as data centers and telecom systems.
2. What is the difference between MPO and LC connectors?
MPO connectors support multiple fibers in one interface, while LC connectors typically support single or duplex fibers, making MPO suitable for high-density applications.
3. How many fibers can an MPO Connector support?
Common configurations include 8, 12, 16, and 24 fibers, depending on the application and network design.
4. What is the difference between MPO male and female connectors?
Male MPO connectors contain guide pins, while female connectors have alignment holes. They must be correctly matched for proper connection.
5. Are MPO Connectors used for 400G and 800G networks?
Yes, MPO Connectors are widely used in 400G and 800G Ethernet systems, especially in hyperscale data center environments.
6. What is an elite MPO Connector?
An elite MPO Connector is a low-loss version designed for high-performance applications, offering better optical performance than standard MPO connectors.
